Central Fringes |
|
|
| A closer look to the inner, early fringes of the slit.
The first picture is to scale, i.e., x and z have the same scaling factor. The picture is thus a magnification of the real observable pattern.
For the second and the following pictures, the scale is changed, such that the pattern becomes best visible. x and z have no longer have the same scaling factor. But for all pictures from the second on, this scale itself stays invariant, only the longitudinal z position is shifted to higher z on the optical axis.
One can discern, how the pattern stays in principle the same, and how it scales with growing z. | Ein näherer Blick auf die inneren, frühen fringes des Spaltes.
Das erste Bild ist richtig skaliert, d.h. x und z besitzen denselben Sklierungsfactor. Das Bild ist damit eine Vergrößerung des tatsächlichen beobachtbaren Bildes.
Vom zweiten Bild an ist die Skalierung geändert, so daß das Muster am besten zur Geltung kommt. x und z sind nicht länger mit demselben Faktor skaliert. Aber für alle Bilder vom zweiten Bild an bleibt die Skalierung selbst die gleiche, nur die longitudinale z-Position wird zu höheren z auf der optischen Achse verschoben.
Man kann erkennen, wie das Muster im Prinzip dasselbe bleibt, und wie es mit wachsendem z skaliert.
|
| Configuration 03 | Konfiguration 03 Download |
| Tiny sublobes superimposed to the intensity near to 1.0 of the most central lobe can be easily discerned. The scale is proportional.
| Kleine Unterlappen, die der Intensität nahe 1.0 des zentralsten Lappens überlagert sind, können leicht erkannt werden. Die Skala ist proportional.
|
| Configuration 04 | Konfiguration 04 Download |
| In a slightly another scale, their structure is better visible.
| In einer etwas anderen Skalierung kann ihre Struktur besser gesehen werden.
|
| Configuration 06 | Konfiguration 06 Download |
| The size of the image is the same, but the
z position is shifted.
| Die Größe des Bildes ist die gleiche, aber die
z-Position ist verschoben.
|

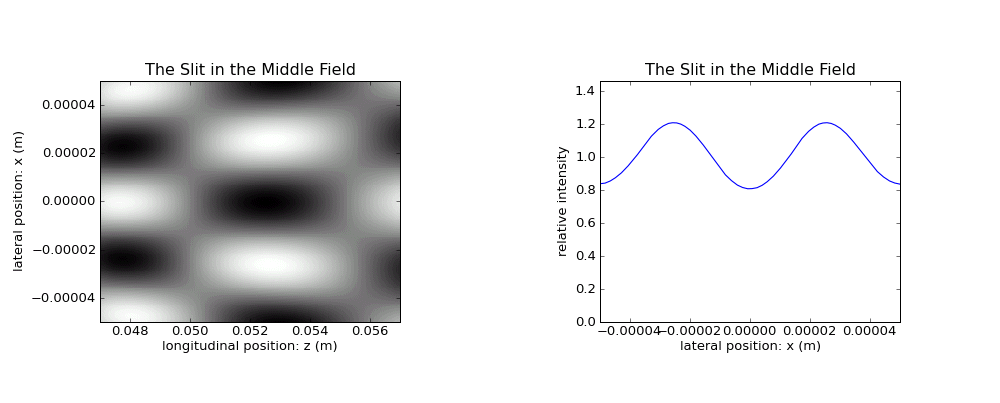

| Configuration 08 | Konfiguration 08 Download |
| The size of the cells grows. Once they will will mature to the Fraunhofer diffraction pattern as described in the
Overview group.
| Die Größe der Zellen wächst. Eines Tages werden sie zum Fraunhofer-Beugungsbild reifen, wie es in der
Übersichts-Gruppe beschrieben wird.
